SECTION 1_INTERNAL FLOATING ROOF & SEAL

INTERNAL FLOATING ROOF has both a permanently affixed roof and a roof that floats inside the tank on the liquid surface (contact deck) or is supported on pontoons several inchs above the liquid surface (non contact deck). The Internal Floating roof rises and falls with the liquid level.

TYPE OF FLOATING ROOFS

  • PONTOON TYPE
  • FULL CONTACT TYPE

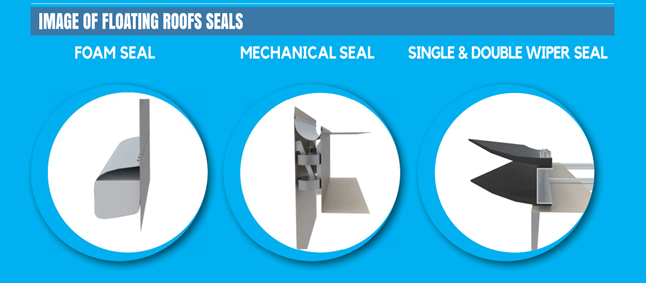

TYPE OF FLOATING ROOFS SEALS

  • FOAM SEAL
  • MECHANICAL SEAL
  • SINGLE / DOUBLE WIPER SEAL

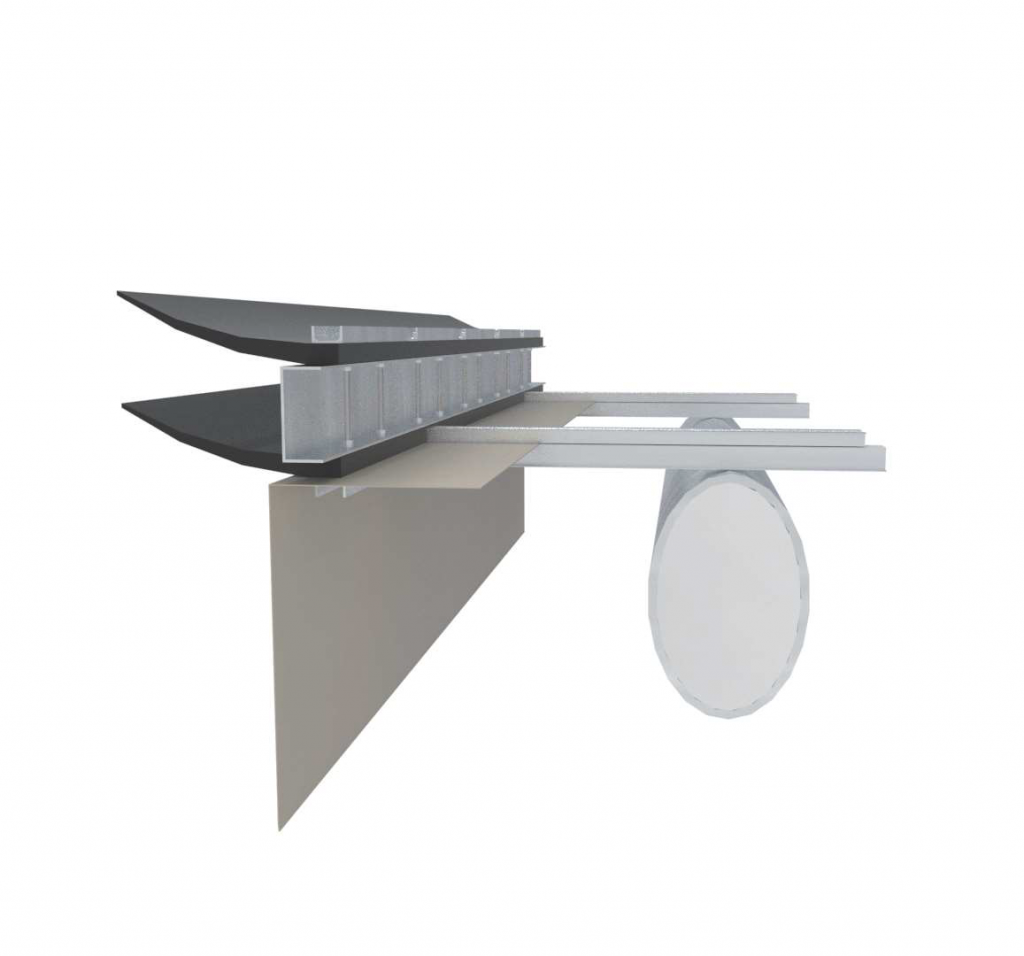

PONTOON TYPE INTERNAL FLOATING ROOF & SEAL

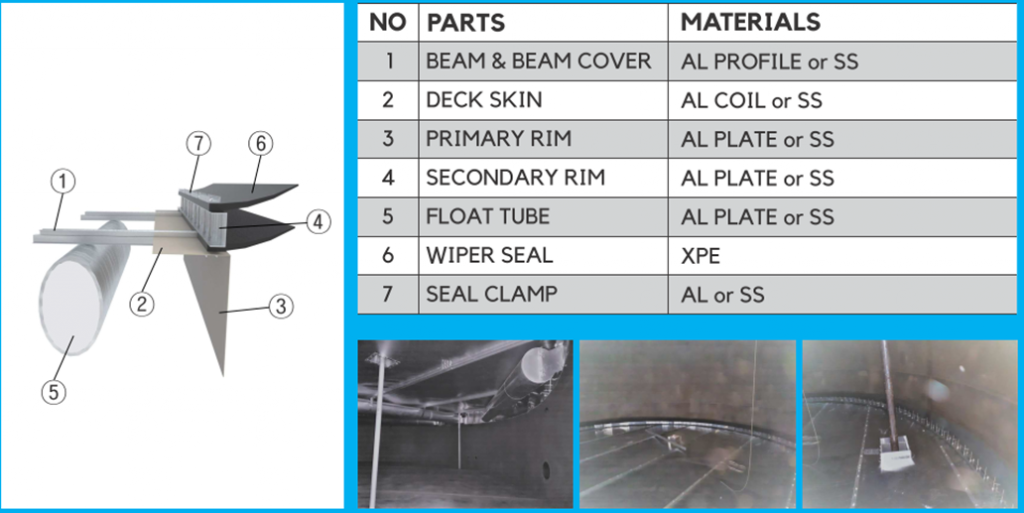

This is the most effective type of floating roof in the market. KSPC pontoon type internal
floating roof, which minimize the evaporation losses of stored products, such as jet fuels,
gasoline, diesel, and crude oil, can be supplied as aluminium or stainless steel.

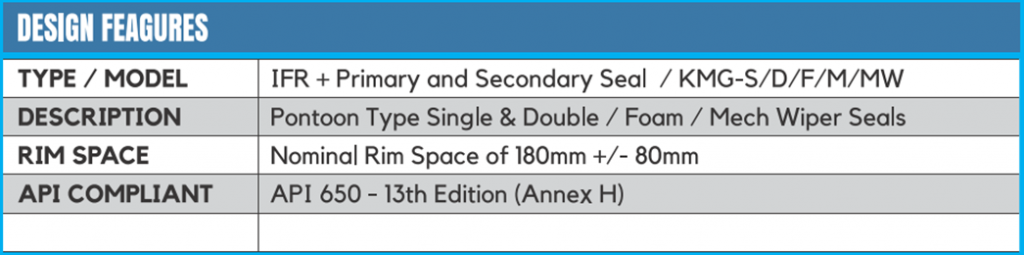

KSPC pontoon type internal fl oating roof is designed, manufactured and tested according
to the API 2000 and API 650 annex H and adjusts to the irregularities of tanks while
remaining gas tight and viturally maintenance free. >>> Datasheet

FULL CONTACT TYPE INTERNAL FLOATING ROOF & SEAL

This is the most effective type of floating roof in the market. KSPC full contact type
(Honeycomb) internal floating roof, which minimize the evaporation losses of stored
products, such as jet fuels, gasoline, diesel, and crude oil, can be supplied as aluminium or
stainless steel.

KSPC full contact type internal fl oating roof is designed, manufactured and tested according
to the API 2000 and API 650 annex H and adjusts to the irregularities of tanks while
remaining gas tight and viturally maintenance free. >>>Datasheet

SECTION 2_EXTERNAL FLOATING ROOF SEAL

EXTERNAL FLOATING ROOF is a storage tank commonly used to store large quantities of
petroleum products such as crude oil or condensate. It consists of an open- topped
cylindrical steel shell equipped with a roof that fl oats on the surface of the stored
liquid. The roof rises and falls with the liquid level in the tank. As opposed to a fi xed
roof tank there is no vapor space (ullage) in the fl oating roof tank (except for very
low liquid level situations).

TYPE OF SECONDARY FLOATING ROOF SEAL

COMPRESSION TYPE

TYPE OF PRIMARY FLOATING ROOF SEAL

FOAM SEAL
SPRING TYPE MECHANICAL SEAL
WEIGHT TYPE MECHANICAL SEAL (= PANTOGRAPH TYPE)

COMPRESSION TYPE EXTERNAL FLOATING ROOF SEAL

This is the most effective type of floating roof seals in the market. KSPC compression seal type
external fl oating roof seal, which minimize the evaporation losses of stored products, such as jet
fuels, gasoline, diesel, and crude oil, can be supplied as aluminium or stainless steel.

It is designed, manufactured and tested according to the NEPA-11 and API 650 annex C and
adjusts to the irregularities of tanks while remaining gas tight and viturally maintenance free. >>> Datasheet

SPRING TYPE EXTERNAL FLOATING ROOF SEAL

This is the most effective type of floating roof seals in the market. KSPC spring type external
floating roof seal, which minimize the evaporation losses of stored products, such as jet fuels,
gasoline, diesel, and crude oil, can be supplied as aluminium or stainless steel.

It is designed, manufactured and tested according to the NEPA-11 and API 650 annex C and
adjusts to the irregularities of tanks while remaining gas tight and viturally maintenance free. >>> Datasheet

WEIGHT TYPE EXTERNAL FLOATING ROOF SEAL

This is the most effective type of floating roof seals in the market. KSPC weight type external
floating roof seal, which minimize the evaporation losses of stored products, such as jet fuels,
gasoline, diesel, and crude oil, can be supplied as aluminium or stainless steel.

It is designed, manufactured and tested according to the NEPA-11 and API 650 annex C and
adjusts to the irregularities of tanks while remaining gas tight and viturally maintenance free.

>>>Datasheet

SECTION 3_ROOF PIPING SYSTEM

ROOF PIPING SYSTEM is a pipe assembly consisting of several pipes, elbows, floats
and swivel joints. This flexible units are used to drain rainwater from the floating
roof on storage tanks or to keep the inlet opening positioned just under the surface
of the liquid to clean the liquid or to skim off liquid contaminants floating on the
product.

TYPE OF ROOF PIPING SYSTEM

ROOF DRAIN SYSTEM
FLOAT SUCTION UNIT
FLOAT OIL SKIMMER (HOSE TYPE & PIPE TYPE)

ROOF DRAIN SYSTEM

ROOF DRAIN SYSTEM is the most economical type of roof drain package in the market. KSPC is a
total solution provider of roof drain systems that manufactures Drains, Joints and Float Check
Valves.

KSPC roof draing system is designed, manufactured and tested according to maker standards
and adjusts to the irregularities of tanks. >>>Datasheet

FLOAT OIL SKIMMER

This is the most economical type of roof drain package in the market. KSPC is a total solution
provider of fl oat oil skimmer that manufactures Pipes, Joints and Floats.

KSPC float oil skimmer is designed, manufactured and tested according to maker standards and
adjusts to the irregularities of tanks. >>> Datasheet

FLOAT SUCTION UNIT

ROOF DRAIN SYSTEM is the most economical type of roof drain package in the market. KSPC is a
total solution provider of fl oat suction unit that manufactures Pipes, Tubings, Joints and Floats.

KSPC float suction unit is designed, manufactured and tested according to maker standards and
adjusts to the irregularities of tanks. >>> Datasheet

SECTION 4_ROOF JOINT ACCESSORIES

SWIVEL / SWING / PIVOT JOINTS

This is the most economical type of roof joint accessories in the market. KSPC is a total solution
provider of roof joint accessories that manufactures Swivel, Swing and Povit Joints.

KSPC roof joint accessories are designed, manufactured and tested according to maker standards
and adjusts to the irregularities of tanks.
